SPI fast Display library is good, KEDEI 3.5 is Garbage.

Video notes for SPI display install on a raspberry pi, “liveblog” style.
A bit lengthy due to my preferred editing style (none).

 Part 1 is riddled with typos and ends with some frustration.

 Part 2 is a roller coaster of excitement, but more importantly, many lessons learned.

Part 3 has some feedback from the author of the library, squirrels, I do some singing, and a conclusion.

Please see my videos for context, but basically the Kedei display is garbage, buy an adafruit or waveshare.

The linked library by juj is AMAZING,  and when used with those waveshare or adafruit spi displays, you can achieve very fast frame rates.

Pinouts
Pi stacked
SPI display

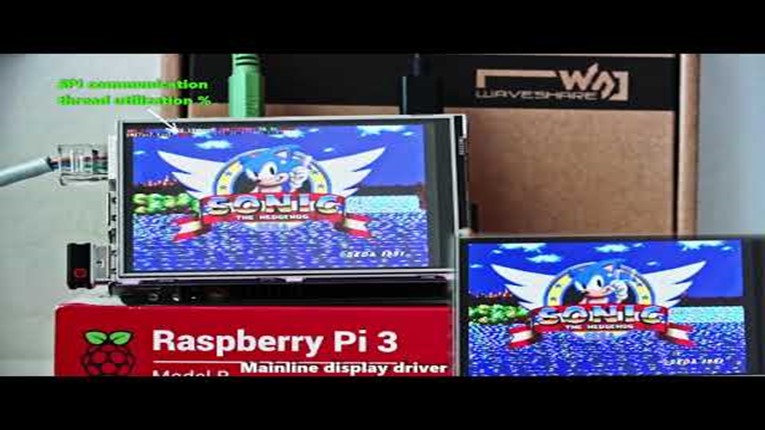

“Juj”‘s Example video fbcp-ili9341 ported to ILI9486 WaveShare 3.5″ (B) SpotPear 320×480 SPI display


Library https://github.com/juj/fbcp-ili9341
Instructions Use raspi-config to configure raspbery pi

  • Enable ssh

Find out ip address ussing “ip address”

Ssh to the rpi

Ssh pi@192.168.1.51
Assuming stock, no changes to /boot/config.txt

If needed, would need to disable dtoverlay or dtparam lines with the #

Cat /boot/config.txt Scroll down…
Looks good
Build and run:

git clone https://github.com/juj/fbcp-ili9341.git

cd fbcp-ili9341

mkdir build

cd build

cmake [options] ..

make -j

sudo ./fbcp-ili9341

*Replace [options] with the appropriate display type.

Make sure you have cmake!


If not

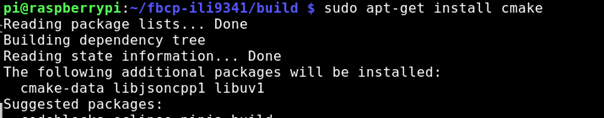

Sudo apt-get install cmake


Then run again

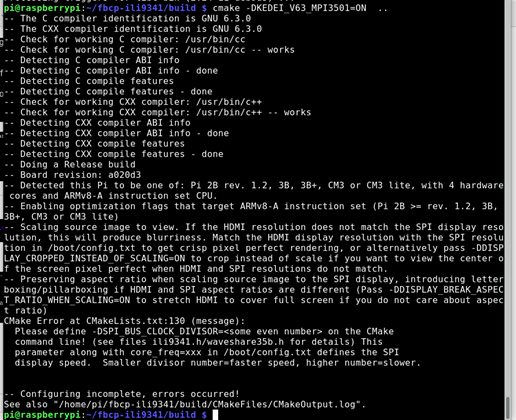

cmake -DKEDEI_V63_MPI3501=ON ..


Errors!

Missing display speed

-DSPI_BUS_CLOCK_DIVISOR=6

So

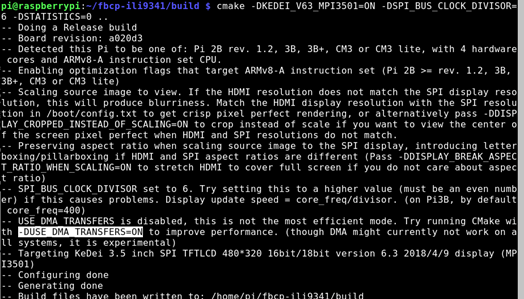

cmake -DKEDEI_V63_MPI3501=ON -DSPI_BUS_CLOCK_DIVISOR=6 -DSTATISTICS=0 ..




Possibly add -DUSE_DMA_TRANSFERS=ON


cmake -DKEDEI_V63_MPI3501=ON -DSPI_BUS_CLOCK_DIVISOR=6 -DSTATISTICS=0 -DUSE_DMA_TRANSFERS=ON ..

Result: no change to white screen

cmake -DKEDEI_V63_MPI3501=ON -DSPI_BUS_CLOCK_DIVISOR=30 ..

Make -j
Run it
No dice?
Auto load on statups sudo /home/pi/fbcp-ili9341/build/fbcp-ili9341 &
Some notes on rc.local

https://www.raspberrypi.org/documentation/linux/usage/rc-local.md

Use & to split

Use full path naems not relative

Edit /etc/rc.local and add

sudo nano /etc/rc.local


sudo /home/pi/fbcp-ili9341/build/fbcp-ili9341 &

And that should go before the exit 0

As so

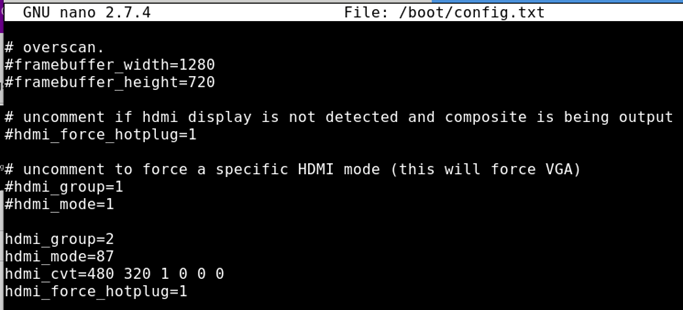

Edit the hdmi size settings in

boot/config.txt

Don’t forget the refresh rate!

Using

Sudo nano /boot/config.txt

Notes on config.txt

Rpf.io/config

Notes on custom HDMI_MODE=87
https://www.raspberrypi.org/forums/viewtopic.php?f=29&t=24679


hdmi_group=2
hdmi_mode=87
hdmi_cvt=480 320 60 1 0 0 0
hdmi_force_hotplug=1




 Could this be helpful?”What I generally do to debug is connect to the Pi via SSH and run watch -n 0.1 gpio -g readallto observe what the IN/OUT and HIGH/LOW status of each GPIO register is, and cross reference the schematics of the display to see if the reset line is as needed.” – https://github.com/juj/fbcp-ili9341/issues/3Conclusion”The KeDei v6.3 display with MPI3501 controller takes the crown of being horrible.”

Can we try the alt git tree?

No, not for this one.

Details
https://stackoverflow.com/questions/7832770/how-to-get-certain-commit-from-github-project/33345534

https://github.com/juj/fbcp-ili9341/commit/4c9229037e923e8f1b866afbcb79b556bf808c4f




Cd (repo)

Git checkout ####

Command to try other tree. Git checkout 4c9229037e923e8f1b866afbcb79b556bf808c4f
Result: Would not compile.
